My AI-first .NET Aspire development setup

FSP-Horizon is a multi-service .NET Aspire app: a Core API, an Auth API, a Portal frontend, an Ortec worker, Seq, Storybook, and the Aspire dashboard itself. Running one instance is a dotnet run in the AppHost project. The trouble starts when multiple agents are working in different worktrees and I want to check all of them at once.

I like to work on several things in parallel, and I use worktrees to do it. Not the way most people use worktrees, though. I keep a .worktrees directory in the base repo with five sub-worktrees, named worktree1 through worktree5. When I start something new I pick the base repo or one of the worktrees, run nb from my PowerShell profile to branch off latest main, then cc to start a Claude Code session (the alias adds --dangerously-skip-permissions), and prompt it with whatever needs doing. When CC is done I run fsp X, where X is the worktree number. In the base repo it’s just fsp. By worktree three I’d lost track of which terminal was running which instance.

The fix turned out to be fairly simple. One PowerShell file, checked into the repo, sourced from every dev’s $PROFILE. One command, fsp N, and worktree N comes up on its own port range with its own colour, secrets, and seed in place.

The shared profile

Initially I had a bunch of commands and aliases in my own PowerShell profile while I was the only one working on this project. When more teammates joined, they ran into the same issues I had, and I’d share fixes by copy-pasting snippets into a Teams chat. Then I’d fix something, forget to share it, and a day later someone would complain about the exact issue I’d already fixed. That’s when I isolated the Horizon-specific logic out of my profile and checked in the FSP-Dev.ps1 script.

Tools/Scripts/FSP-Dev.ps1 lives in the FSP-Horizon repo. New dev clones the repo, adds one line to their $PROFILE:

. "D:\FSP-Horizon\Tools\Scripts\FSP-Dev.ps1"

That’s it. Open a new PowerShell window and the whole toolkit is loaded. Because it’s in the repo, it’s versioned. Someone fixes a port-allocation bug, everyone gets the fix on next pull. No drift, no “works on my machine for the dev env itself”.

The four pieces

Worktree discovery. On profile load, Get-HorizonWorktrees walks .worktrees\worktreeN and finds every numbered worktree. For each one it generates wN (cd into it) and wNcc (cd in and launch Claude Code). So w2 jumps to worktree 2, w2cc jumps in and starts CC there. Add a worktree on disk, restart the shell, and the aliases appear without any config edits.

The generation itself is a PowerShell trick worth seeing once:

foreach ($wt in Get-HorizonWorktrees) {
    $n = $wt.Number
    Set-Item -Path "function:global:w$n" `
        -Value ([scriptblock]::Create("Set-Location '$($wt.Path)'"))
}

A function per worktree, defined dynamically, scoped global so it survives outside the loop.

fsp N. Port offset is N * 1000. Worktree 2 adds 2000 to each service’s base port, worktree 3 adds 3000, and so on across all seven services, so two instances on different worktrees never end up on the same socket.

$offset    = $InstanceNumber * 1000
$corePort  = $BasePorts.Core    + $offset
$authPort  = $BasePorts.Auth    + $offset
$portalPort= $BasePorts.Portal  + $offset
# ...same shape for Ortec, Seq, Storybook, Aspire dashboard

fsp also takes care of a couple of setup chores before launching the app. It mirrors the Core API’s connection string into the Ortec worker’s user-secrets, because the two projects have different UserSecretsId values but talk to the same DB. And it idempotently seeds a LOCAL-TEST-{org} department setting plus two webhook subscription rows via sqlcmd, so POST /webhooks/ortec resolves to a tenant on a fresh DB instead of 404-ing. Then dotnet watch run.

Color-coded terminals. Each instance tints its terminal background a different pastel via the OSC-11 escape, and resets on exit. The map: 0 grey, 1 violet, 2 blue, 3 red, 4 green, 5 yellow.

$bgColor = $InstanceColors[$InstanceNumber]
Write-Host "`e]11;$bgColor`e\" -NoNewline
# ... fsp does its thing ...
# on exit:
Write-Host "`e]111`e\" -NoNewline   # reset to default

With six panes open I never have to read a window title to know which instance I’m looking at, blue means worktree 2.

The colours also help when I’m verifying in the browser. I keep a Chrome tab group per running session, each one coloured to match its terminal background, with a name like 2 - Login so I know what work the worktree is for. When I’m done verifying I don’t delete the group, I press alt + shift + w to close it but keep the colour, name, and the right localhost:port for that worktree. Next time I want to come back to it, I click the group, rename it, and I’m straight back in.

One-command Windows Terminal layouts. run opens a new Windows Terminal window with the base repo and all five worktrees in a 6-pane grid, each pane already cd’d into its .worktrees\worktreeN directory. run -Add does the same but adds the panes to the current terminal window instead of a new one, which I use more often than I expected.

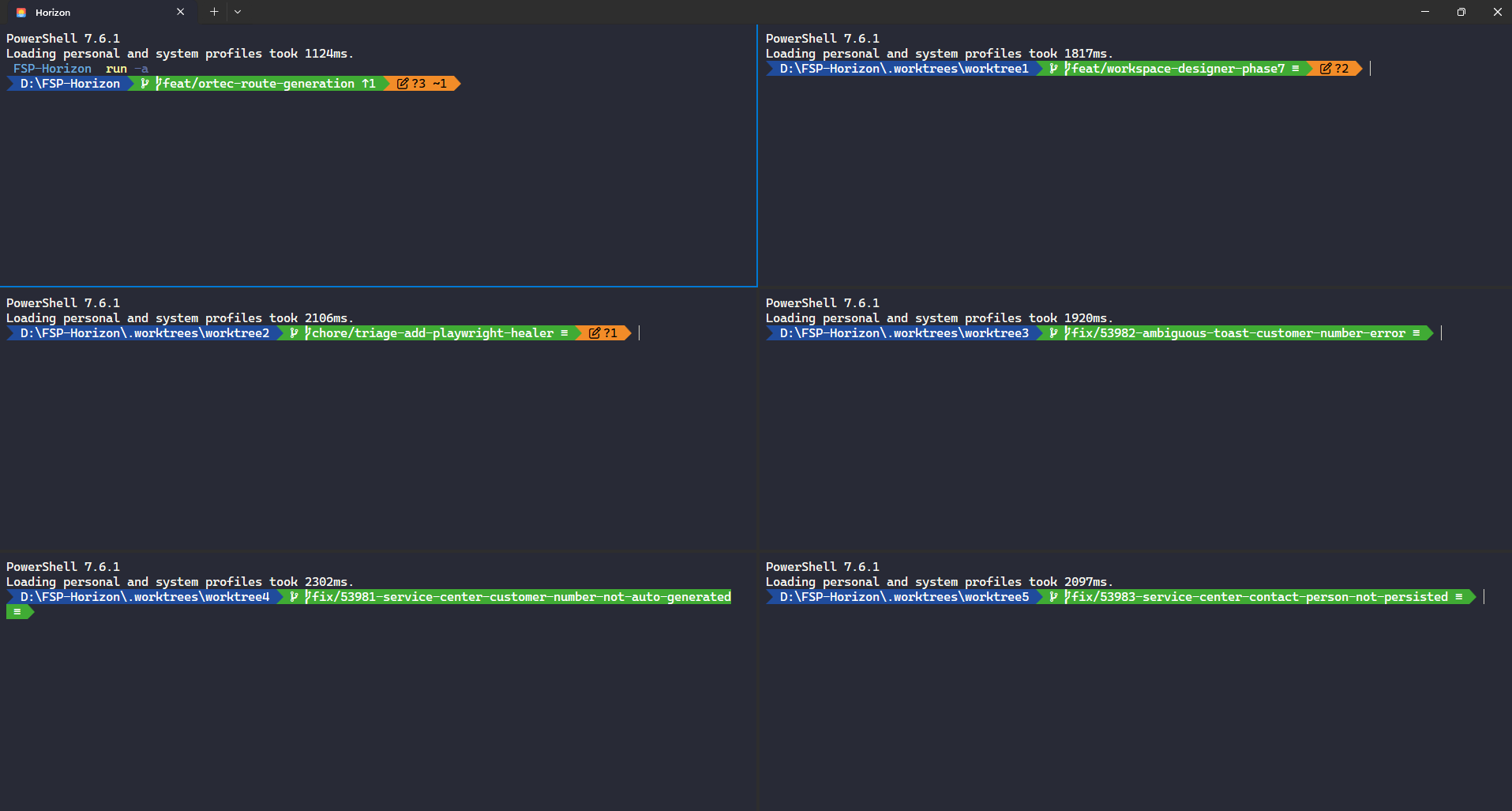

Five worktree panes opened by run -Add — run -Add: five worktrees added to the current Windows Terminal window

coding is the slimmer 3-worktree variant. Six panes is fine when running the platform, but when coding you need more screen real-estate to properly read code, so I keep at most 4 panes open: base and worktree 1 side by side on top, worktree 2 under base and worktree 3 under worktree 1. coding -Add adds those three to the current window. codingextra stacks worktrees 4 and 5 on top of an existing coding layout.

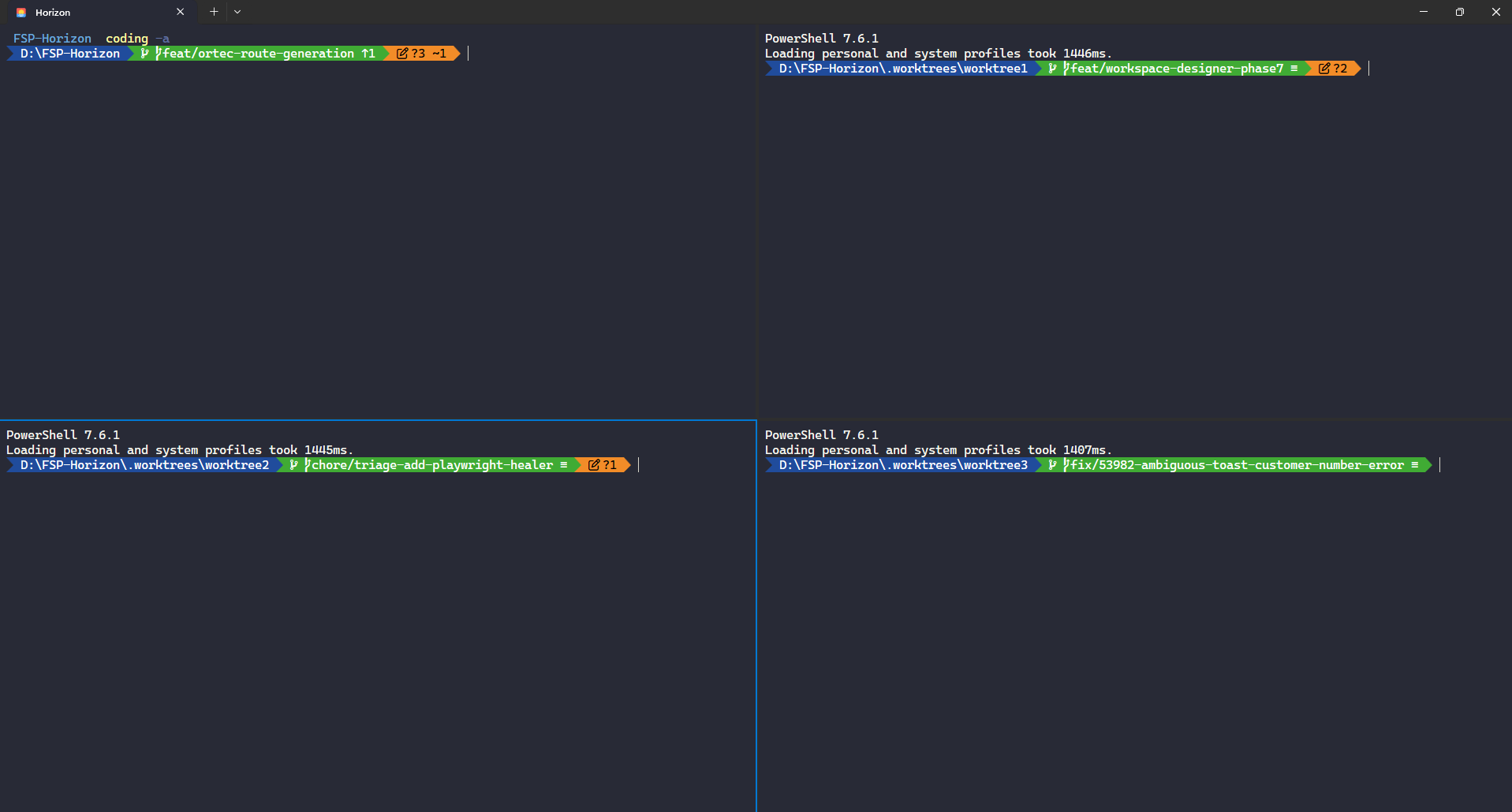

Three worktree panes opened by coding -Add — coding -Add: worktrees 1, 2, and 3 added to the current Windows Terminal window

devlayout N and devlayoutall are variants that put a Claude Code pane on top of each worktree pane, so the bottom half is the shell and the top half is CC ready to prompt.

The PowerShell layer underneath

A few smaller things I use daily which are also in my profile:

PSReadLine in ListView prediction mode. Enabled this after reading a blog post from Scott Hanselmann and never looked back. Offers predictive intellisense for PowerShell.
oh-my-posh with a custom theme (koen.omp.json). Shows the current directory, checked out branch, incoming and outgoing commits and the modified and untracked files in git.
Terminal-Icons loaded in a background Start-ThreadJob so the prompt isn’t blocked on startup. Saves about a second on cold open. Adds icons when listing directories in the terminal.
fnm for Node version pinning per directory, prevents a lot of headaches when having to work in older projects.
cc for claude --dangerously-skip-permissions.
cicheck runs the same checks CI runs, in parallel via Start-Job: Portal bun install --frozen-lockfile + typecheck + lint + build, Core API restore + build + test, Ortec worker restore + build + test. Catches the embarrassing stuff before push.
nb feat user-prefs branches off origin/main (after fetching, so you’re on the latest and don’t create a new branch on a stale main) without checking out main, so it doesn’t fight a sibling worktree that already has main checked out.
kd (Stop-Dotnet) kills hung dotnet processes when dotnet watch refuses to let go of a port.

How I actually use it

When I open my laptop I either type run -a, or I start from the current terminal window and create a horizontal pane with alt + shift + minus. Top pane has cc (Claude) open, bottom pane has fsp X running, where X depends on the worktree I’m in. Sometimes I rename the tab so I can spot which window is which on alt + tab.

Once the first session is running I check the open PRs to see if I need to act on any, then pick up an item, open a new Windows Terminal window, create the horizontal pane, rename the tab for context.
